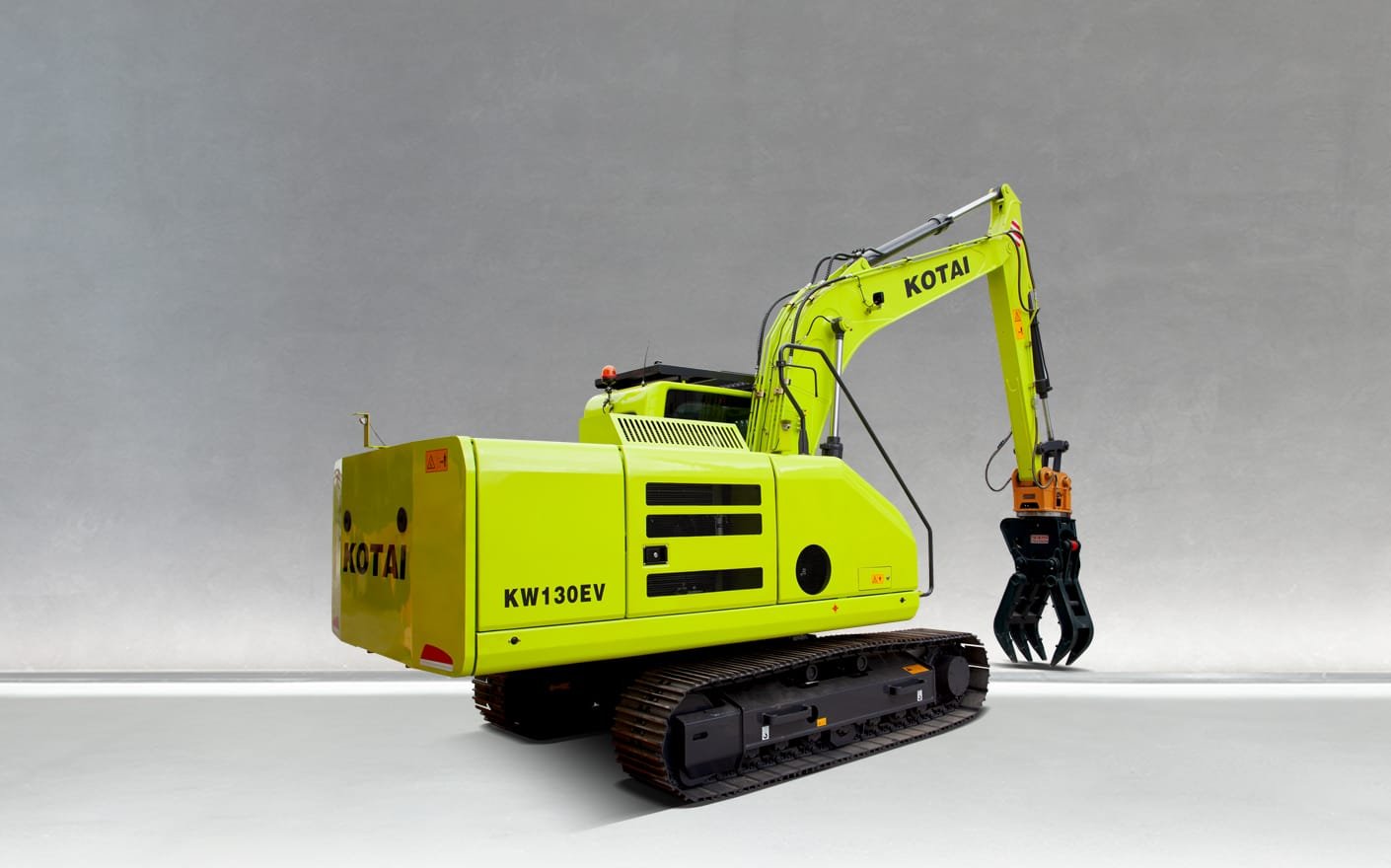

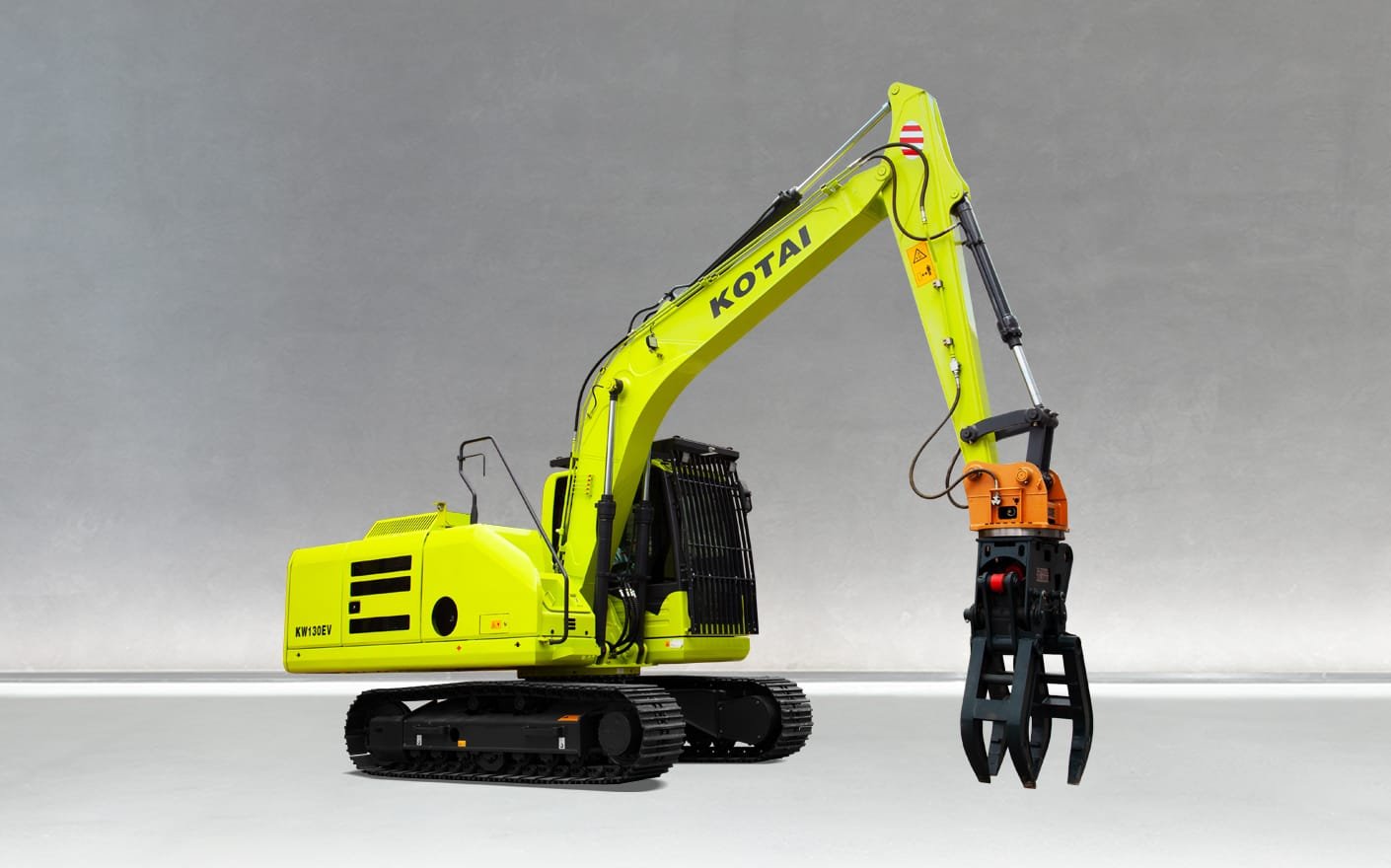

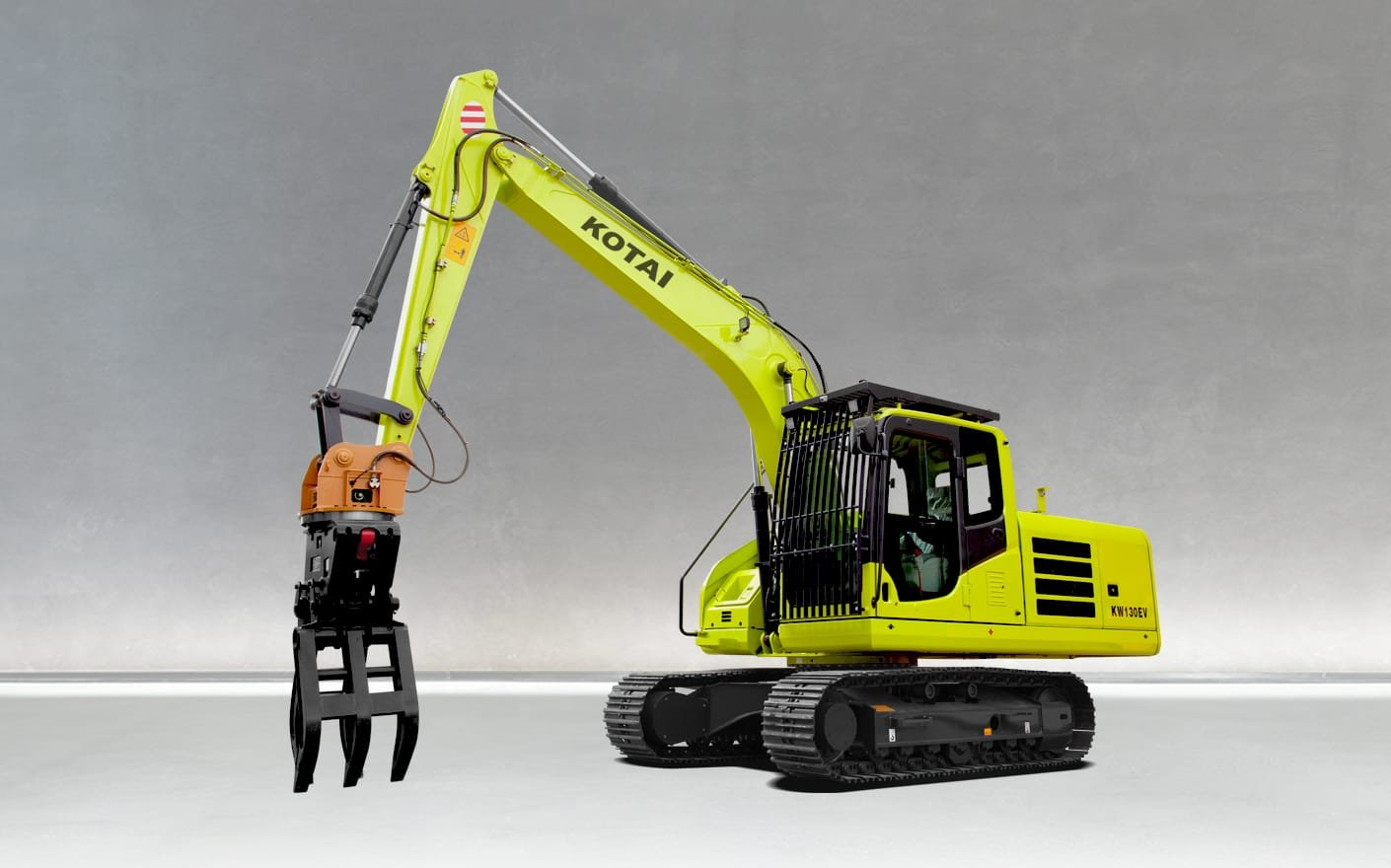

The KW130EV series electric excavator is suitable for excavation, loading and transportation operations under various working conditions, serving as an ideal high-efficiency equipment for earthwork construction and bulk material handling.
Equipped with a three-electric drive system and precisely calibrated hydraulic system, it features energy conservation, low consumption and smooth operation. It is fitted with an 8-inch intelligent display screen, 5G short/long-distance control and fault diagnosis functions, as well as an intelligent thermal management heat dissipation system.
Boasting a brand-new appearance and ergonomic cab, it has lower maintenance cost and longer maintenance intervals. With a small tail swing radius, it adapts to narrow working spaces and realizes multi-purpose operation with various attachments.
| Modelo | KW130EV |
| Serie | KW-EV |
| Descripción | Electric Excavator |
| Peso(t) | 14.2 |
| Potencia Nominal (kW) | 105 |
| Velocidad Nominal (r/min) | 2000 |
| Capacidad de la Cuchara (m³) | 0.66 |
| Velocidad de Desplazamiento (km/h) | 5.3/3.1 |
| Velocidad de Giro (r/min) | 12.6 |
| Capacidad de Pendiente (%) | 35 |
| Fuerza de Excavación en la Cuchara (kN) | 106 |
| Presión de Contacto con el Suelo (kPa) | 86 |
| Longitud Total (mm) | 8378 |
| Ancho Total (mm) | 2490 |
| Altura Total (hasta la parte superior de la pluma) (mm) | 2780 |
| Altura Total (hasta la parte superior de la cabina) (mm) | 2813 |
| Distancia al Suelo del Contrapeso (mm) | 870 |
| Distancia Mínima al Suelo (mm) | 433 |
| Radio de Giro de la Parte Trasera (mm) | 2905 |
| Trocha | 1960 |
| Ancho de la Teja de Oruga (mm) | 500 |
| Ancho de la Plataforma Giratoria (mm) | 2490 |
| Longitud del Brazo (mm) | 2500 |
| Longitud de la Pluma (mm) | 4600 |
| Altura Máxima de Excavación (mm) | 8630 |
| Altura Máxima de Descarga (mm) | 6180 |
| Profundidad Máxima de Excavación (mm) | 5501 |
| Radio de Giro Mínimo (mm) | 2495 |
