Loaders are mainly applied in working conditions such as mines, construction sites, ports and material yards. They can perform operations including earth-rock shoveling and loading, sand and gravel handling, stacking, short-distance transportation, site leveling and cleaning.
Equipped with a quick coupler, it can be fitted with attachments such as log grapples, hydraulic breakers and snow plows to realize multi-functional operations like grabbing, crushing and snow removal. Featuring flexible mobility, agile steering and high working efficiency, the loader is a widely used core construction machine in infrastructure construction, mining, as well as agricultural and forestry material transportation.

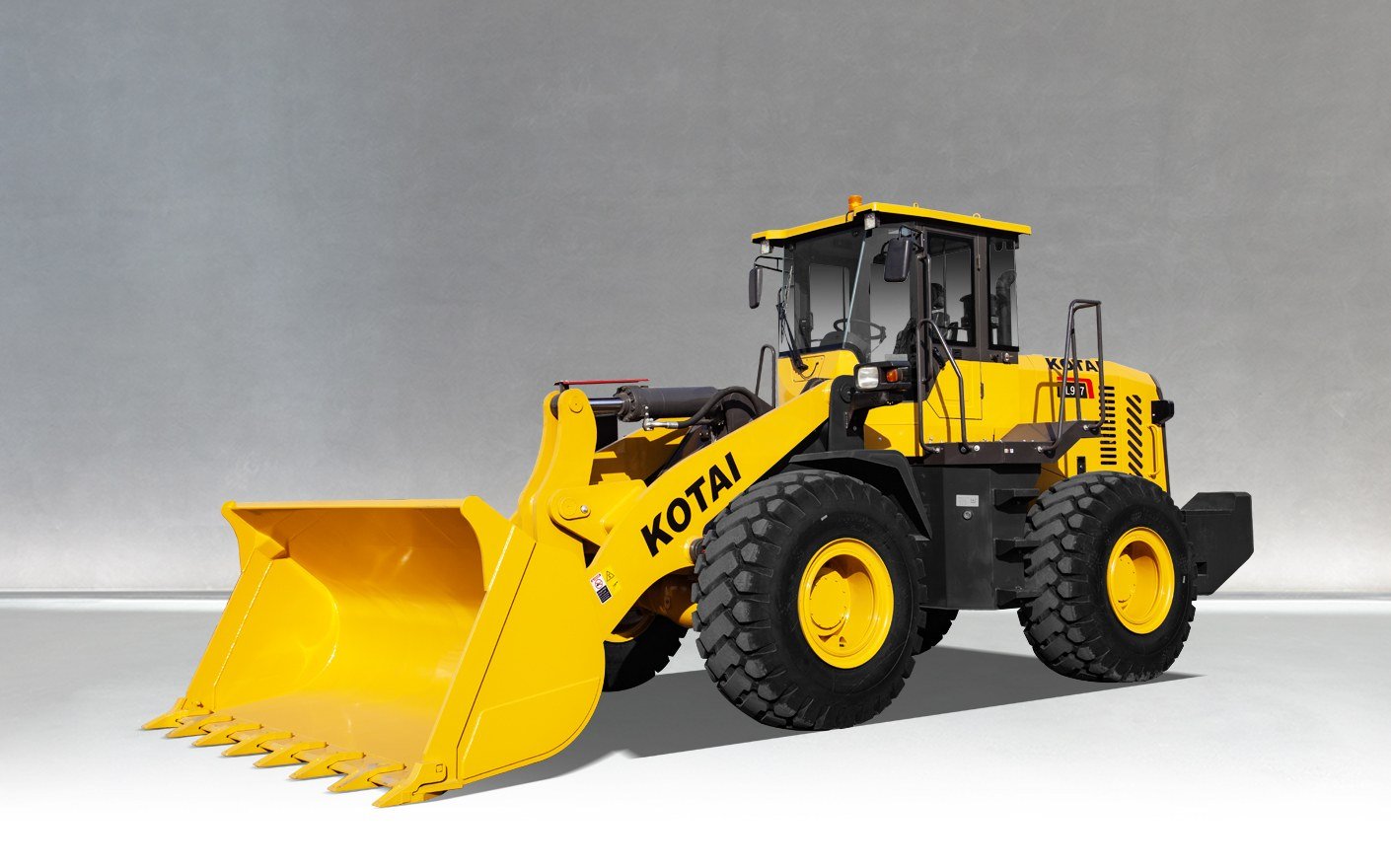

| Modelo | KL957 |
| Serie | KL |
| Descripción | Wheel Loader |
| Presión del Sistema (MPa) | 18 |
| Tiempo Total del Ciclo (s) | 11.3 |
| Peso(t) | 16 |
| Carga nominal（kg） | 5000 |
| Marca del Motor | Weichai |
| Potencia Nominal (kW) | 162 |
| Velocidad Nominal (r/min) | 2200 |
| Capacidad Nominal de la Cuchara(m³) | 3 |
| Fuerza Máxima de Desprendimiento (kN) | 160 |
| Altura de Descarga (mm) | 3050 |
| Alcance de Descarga (mm) | 1148 |
| Longitud Total (mm) | 8136 |
| Ancho Total (mm) | 2800 |
| Altura Total (mm) | 3537 |
| Distancia entre Ejes (mm) | 3420 |
| Ancho de Vía / Trocha (mm) | 2200 |
| Distancia Mínima al Suelo (mm) | 476 |
| Especificaciones de Neumáticos | 23.5-25 |
| Número de Neumáticos | 4 |
| Tipo de Convertidor de Par | 4-element,single stage |
| Marchas (Avance/Retroceso) | F2/R1 |
| Velocidad de Desplazamiento (km/h) | 38km/h |
| Fuerza Máxima de Tracción (kN) | 160 |
| Tipo | Full hydraulic steering system |
| Ángulo de Dirección (°) | ±35 |
| Radio de Giro Mínimo (mm) | 6888 |
| Freno de Servicio | Air assisted oil.4wheel brake |
| Freno de Estacionamiento | Manual air-controlled actuate drum brake act as emergency brake |
