Loaders are mainly applied in working conditions such as mines, construction sites, ports and material yards. They can perform operations including earth-rock shoveling and loading, sand and gravel handling, stacking, short-distance transportation, site leveling and cleaning.
Equipped with a quick coupler, it can be fitted with attachments such as log grapples, hydraulic breakers and snow plows to realize multi-functional operations like grabbing, crushing and snow removal. Featuring flexible mobility, agile steering and high working efficiency, the loader is a widely used core construction machine in infrastructure construction, mining, as well as agricultural and forestry material transportation.

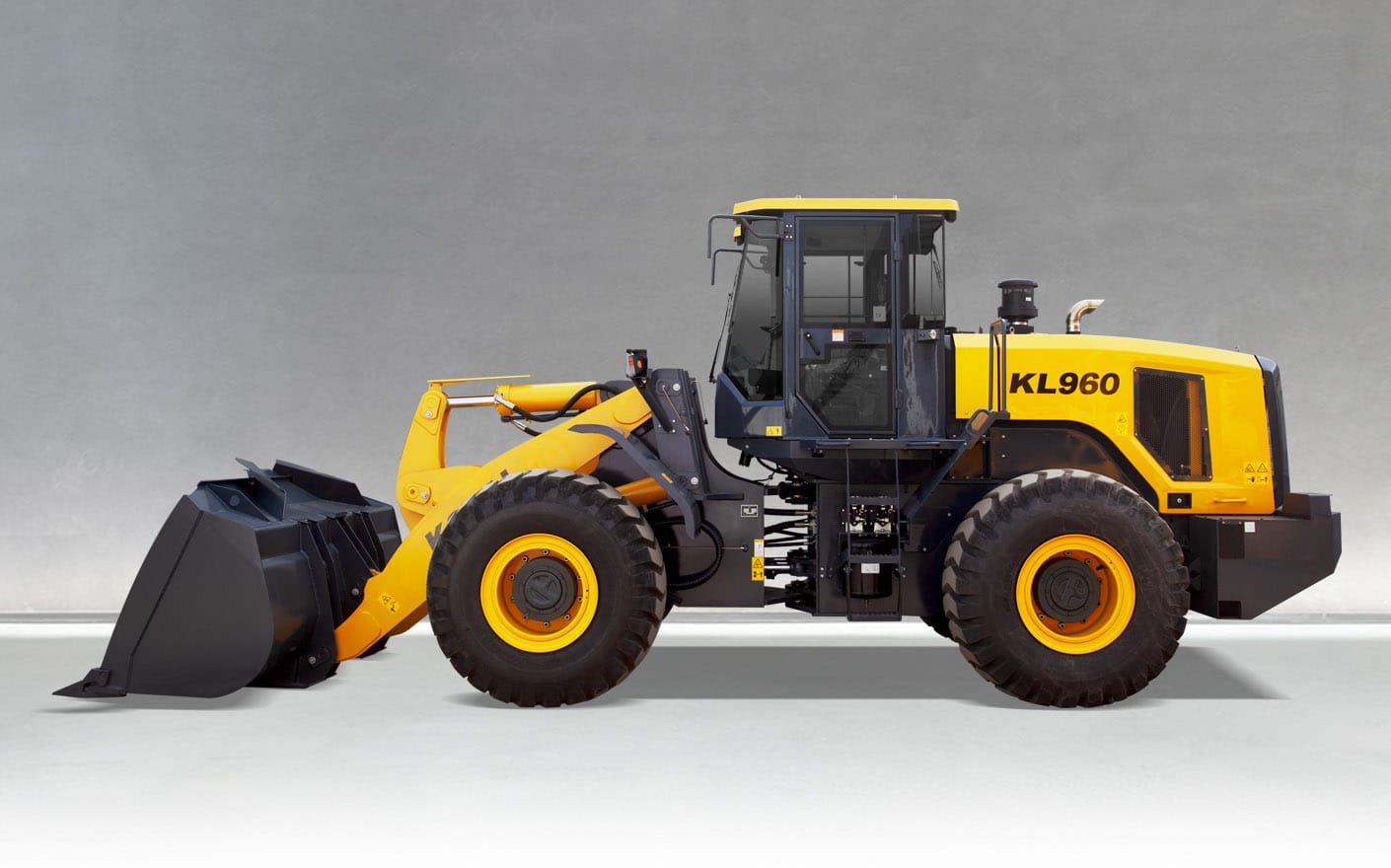

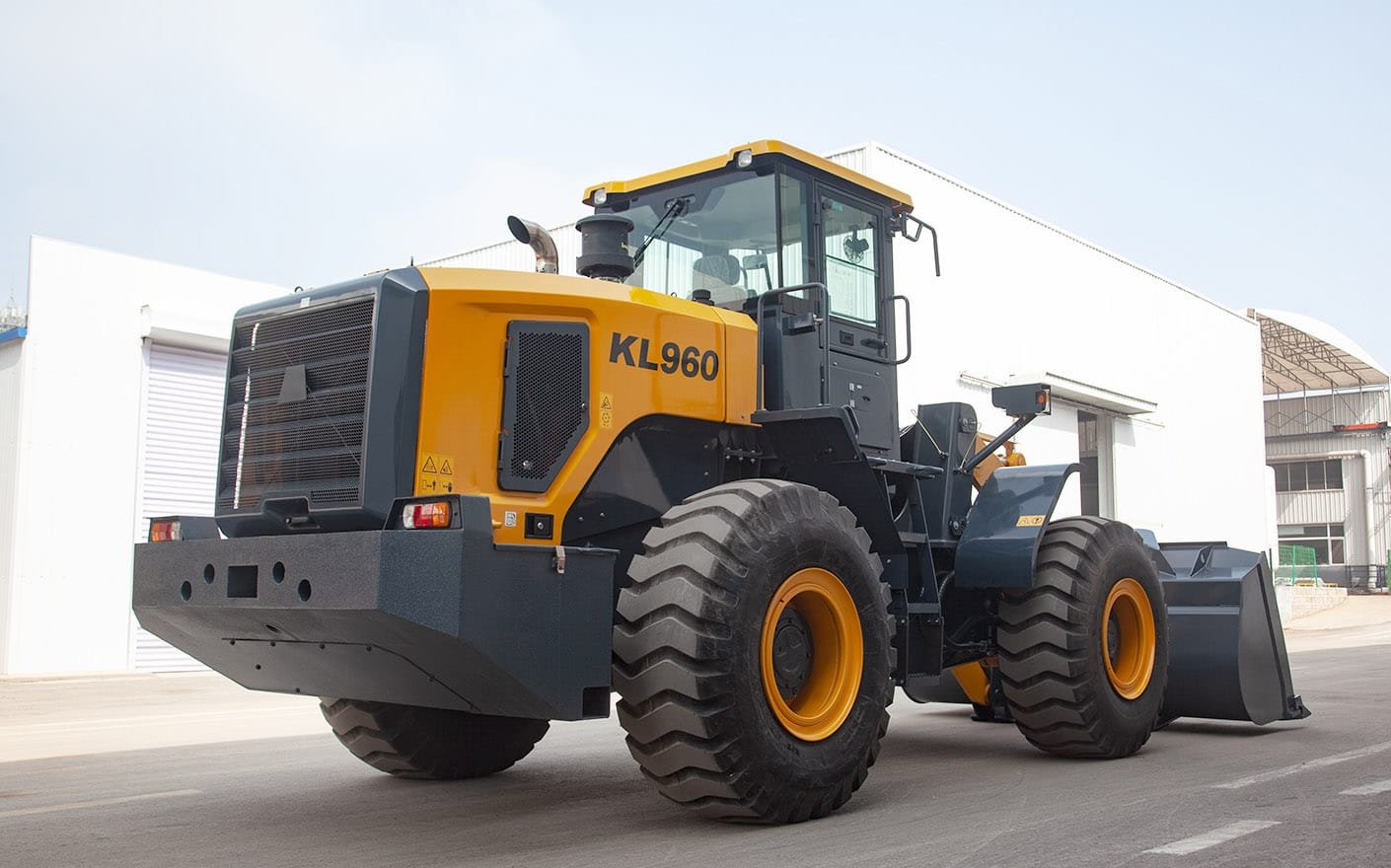

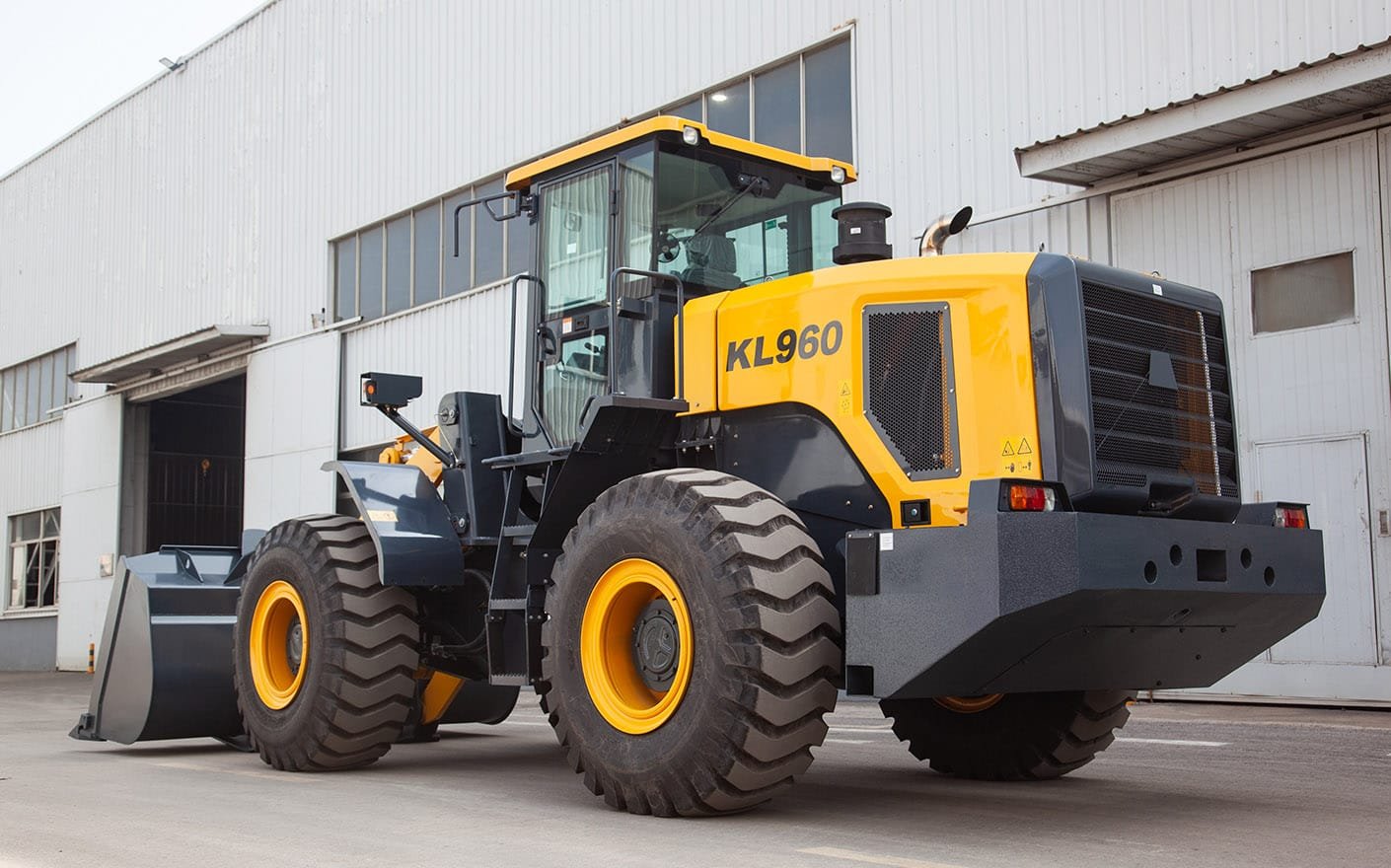

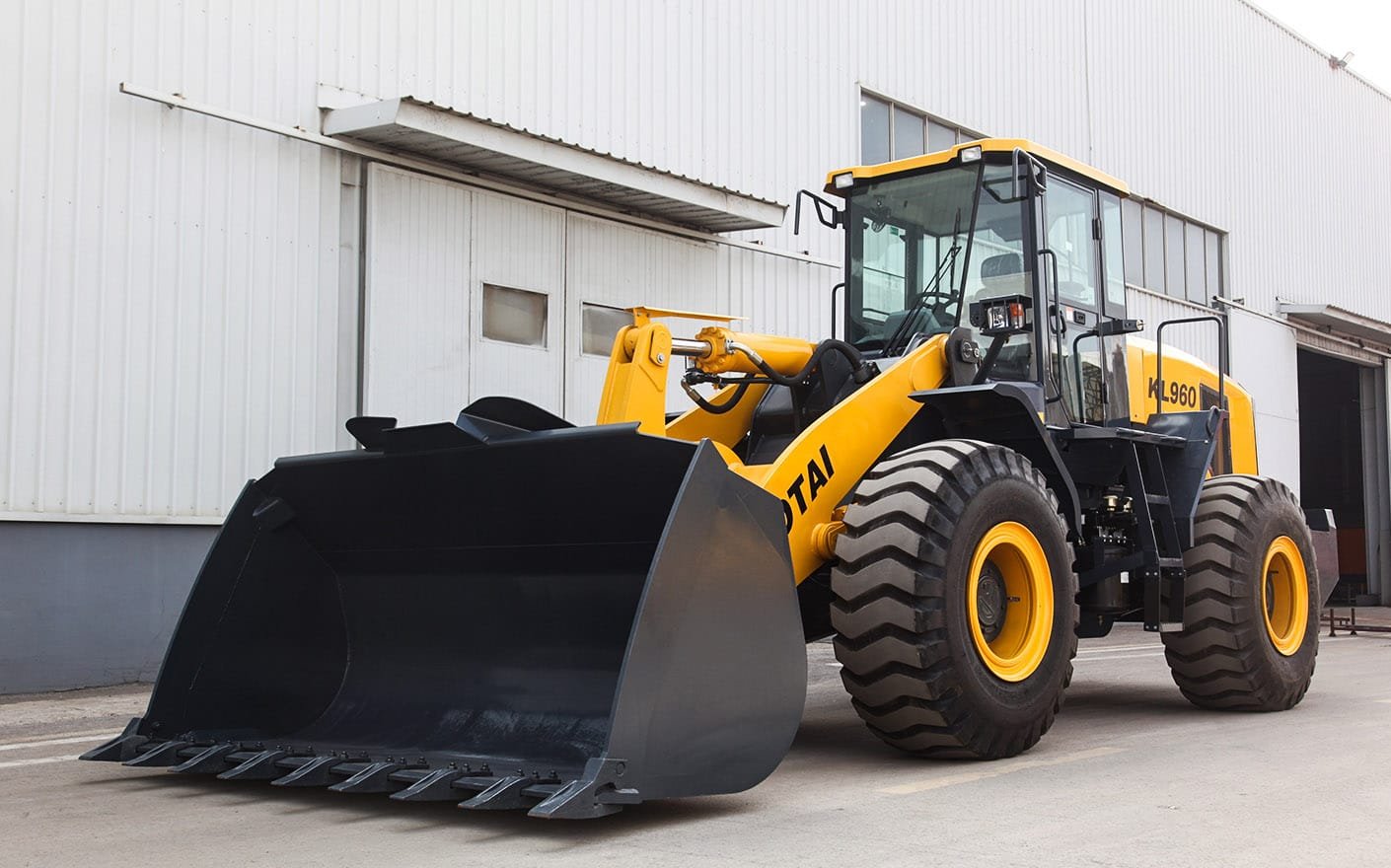

| Modelo | KL960 |
| Serie | KL |
| Descripción | Wheel Loader |
| Presión del Sistema (MPa) | 20 |
| Tiempo de Elevación (s) | 5.5 |
| Tiempo de Descenso (s) | 3.8 |
| Tiempo de Descarga (s) | 1.8 |
| Peso(t) | 18 |
| Carga nominal (kg) | 5800 |
| Marca del Motor | Cummins |
| Potencia Nominal (kW) | 168 |
| Velocidad Nominal (r/min) | 2000 |
| Capacidad Nominal de la Cuchara(m³) | 3.5 |
| Fuerza Máxima de Desprendimiento (kN) | 165 |
| Altura de Descarga (mm) | 3110 |
| Alcance de Descarga (mm) | 1171 |
| Longitud Total (mm) | 8136 |
| Ancho Total (mm) | 2800 |
| Altura Total (mm) | 3537 |
| Distancia entre Ejes (mm) | 3420 |
| Ancho de Vía / Trocha (mm) | 2200 |
| Distancia Mínima al Suelo (mm) | 476 |
| Tanque de Combustible (L) | 400 |
| Tanque de Aceite Hidráulico (L) | 180 |
| Tipo de Convertidor de Par | Twin-turbine 4-elements |
| Marchas (Avance/Retroceso) | F2/R1 |
| Velocidad de Desplazamiento (km/h) | F:11.7/39.5 R:15.9 |
| Fuerza Máxima de Tracción (kN) | 190 |
| Relación de Transmisión Principal | 4.625 |
| Relación de Reducción en el Cubo de Rueda | 4.941 |
| Capacidad Máxima de Pendiente (°) | 30 |
| Tipo | Middle articulated frame、Load sensing full hydraulic steering |
| Radio de Giro Mínimo (mm) | 6420 |
