Loaders are mainly applied in working conditions such as mines, construction sites, ports and material yards. They can perform operations including earth-rock shoveling and loading, sand and gravel handling, stacking, short-distance transportation, site leveling and cleaning.
Equipped with a quick coupler, it can be fitted with attachments such as log grapples, hydraulic breakers and snow plows to realize multi-functional operations like grabbing, crushing and snow removal. Featuring flexible mobility, agile steering and high working efficiency, the loader is a widely used core construction machine in infrastructure construction, mining, as well as agricultural and forestry material transportation.

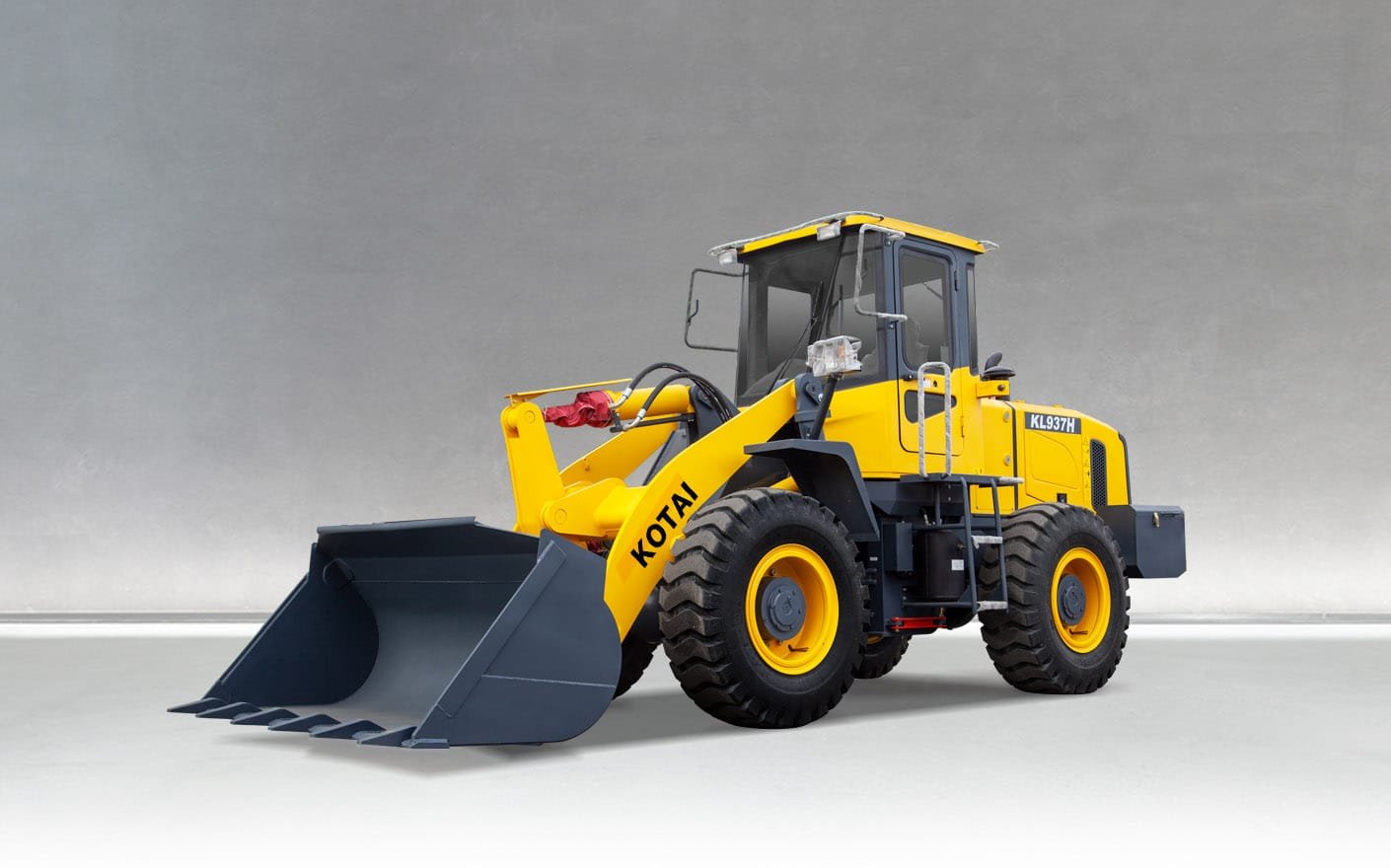

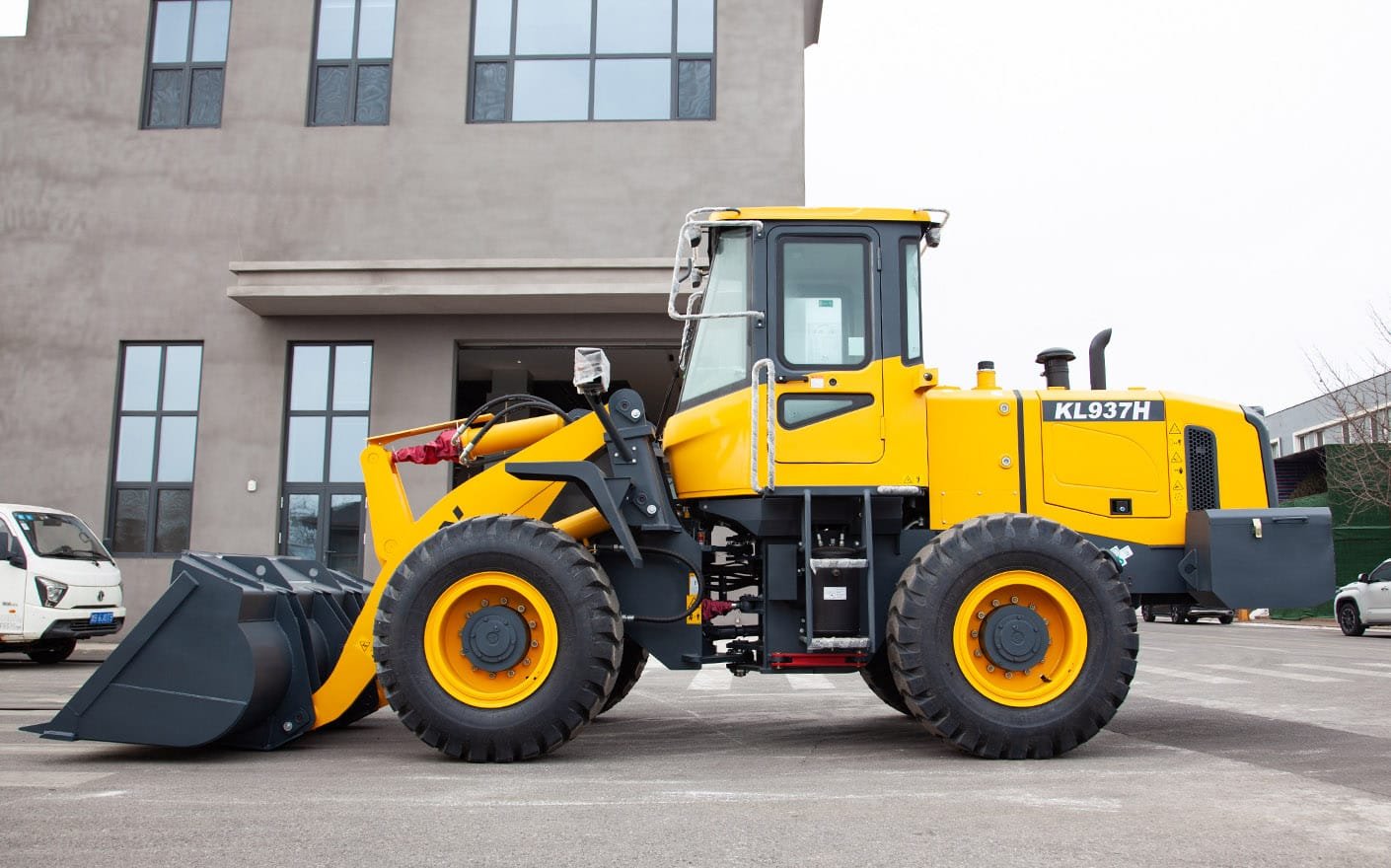

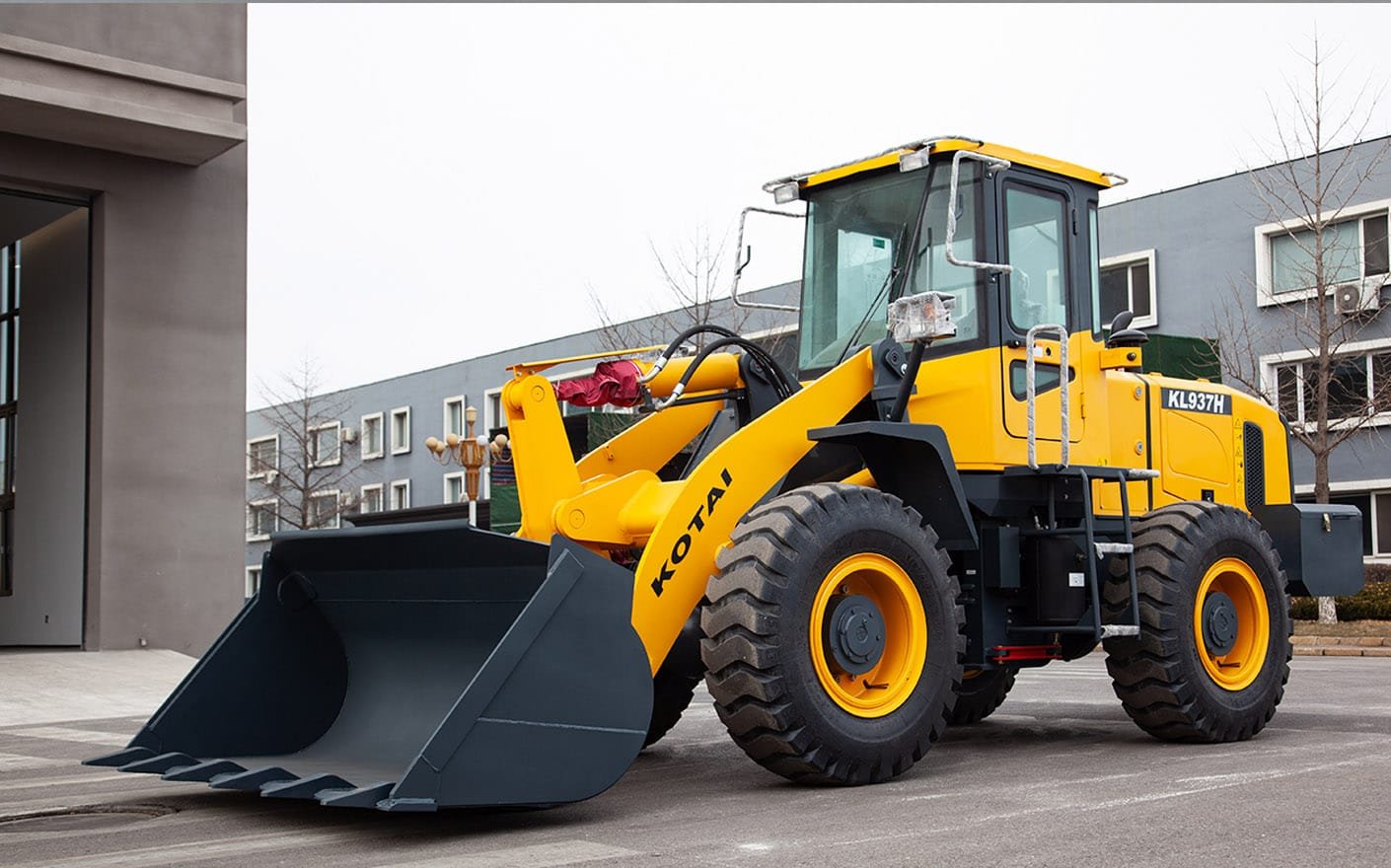

| Modelo | KL937H |
| Serie | KL |
| Descripción | Wheel Loader |
| Presión del Sistema (MPa) | 16 |
| Tiempo de Elevación (s) | 5.2 |
| Tiempo de Descenso (s) | 3 |
| Tiempo de Descarga (s) | 1.1 |
| Peso(t) | 10.2 |
| Carga Nominal (kg) | 3000 |
| Marca del Motor | Cummins |
| Potencia Nominal (kW) | 97 |
| Velocidad Nominal (r/min) | 2200 |
| Capacidad Nominal de la Cuchara(m³) | 1.7 |
| Fuerza Máxima de Desprendimiento (kN) | 96 |
| Altura de Descarga (mm) | 2934 |
| Alcance de Descarga (mm) | 1043 |
| Carga de Volcar (kg) | 5880 |
| Longitud Total (mm) | 7000 |
| Ancho Total (mm) | 2460 |
| Altura Total (mm) | 3136 |
| Distancia entre Ejes (mm) | 2750 |
| Ancho de Vía / Trocha (mm) | 1855 |
| Distancia Mínima al Suelo (mm) | 360 |
| Tanque de Combustible (L) | 130 |
| Tanque de Aceite Hidráulico (L) | 120 |
| Fuerza Máxima de Tracción (kN) | 96 |
| Relación de Transmisión Principal | 4.222 |
| Relación de Reducción en el Cubo de Rueda | 4.8 |
| Capacidad Máxima de Pendiente (°) | 30 |
| Tipo | Middle articulated frame、Load sensing full hydraulic steering |
| Ángulo de Dirección (°) | ±38 |
| Radio de Giro Mínimo (mm) | 5913 |
| Tipo de Convertidor de Par | Single stage, single phase and 3-elements |
| Marchas (Avance/Retroceso) | F4/R2 |
| Velocidad de Desplazamiento (km/h) | F:7.8/14.7/23.5/41.2 R:10.8/31.6 |
