KS267H

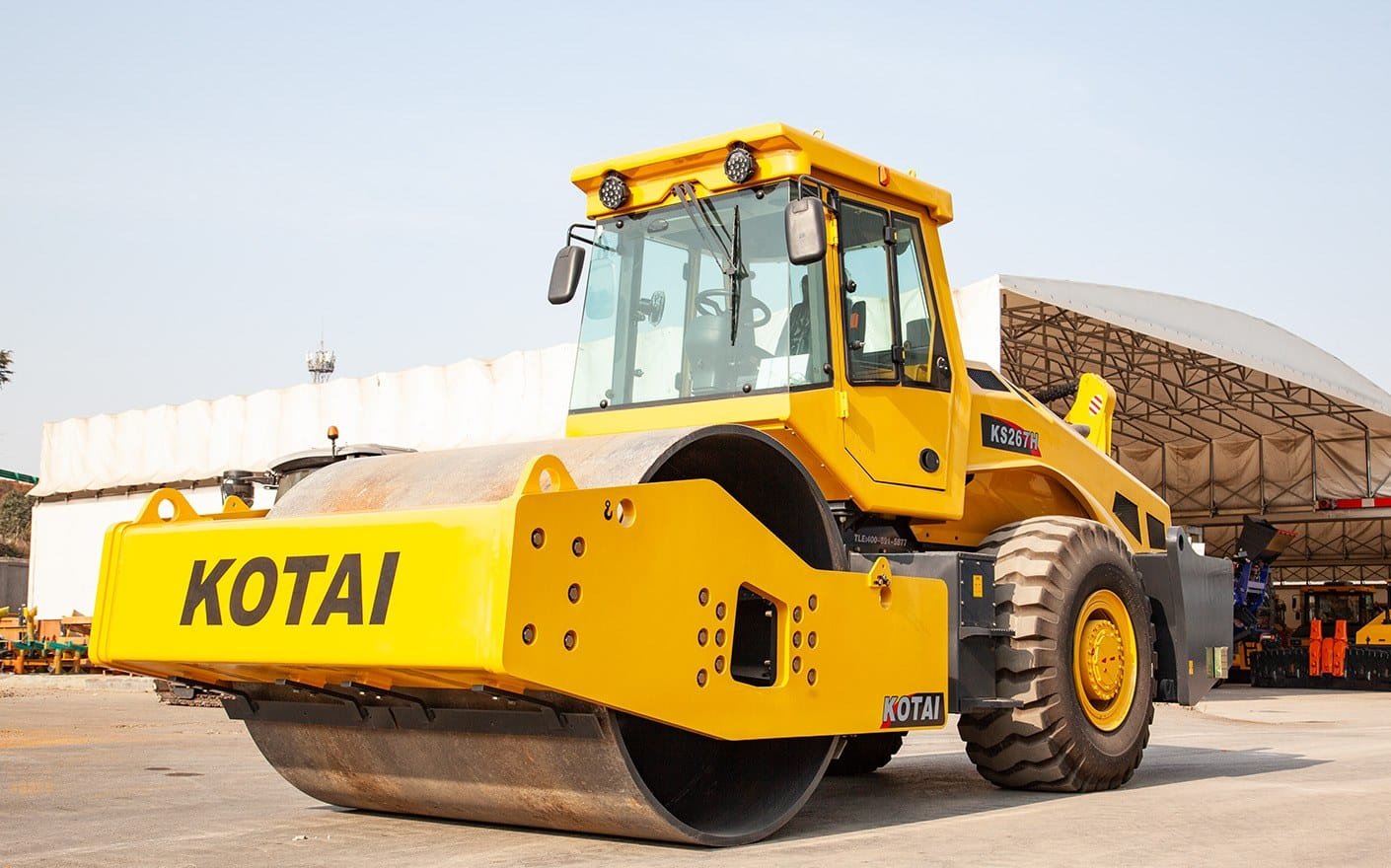

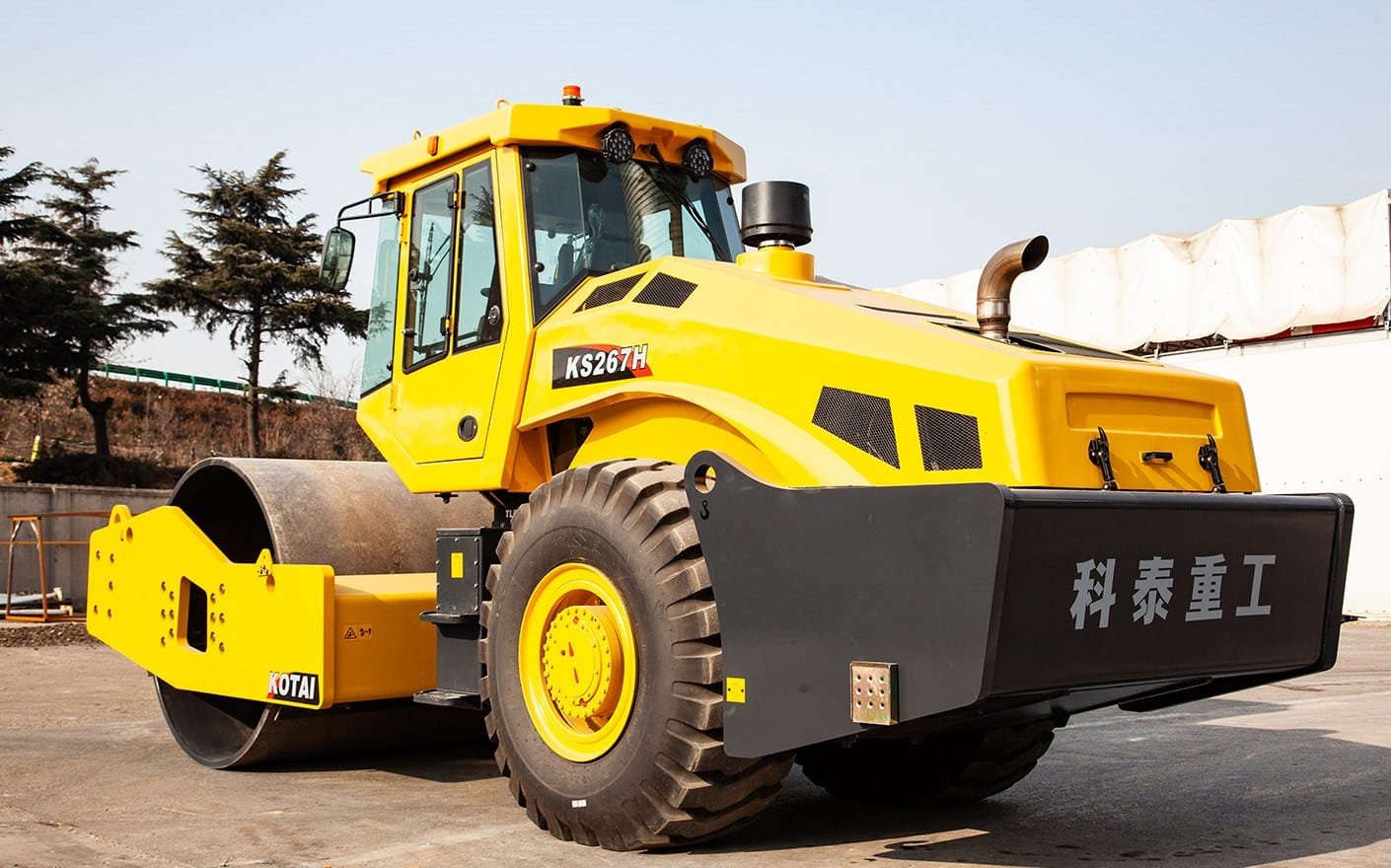

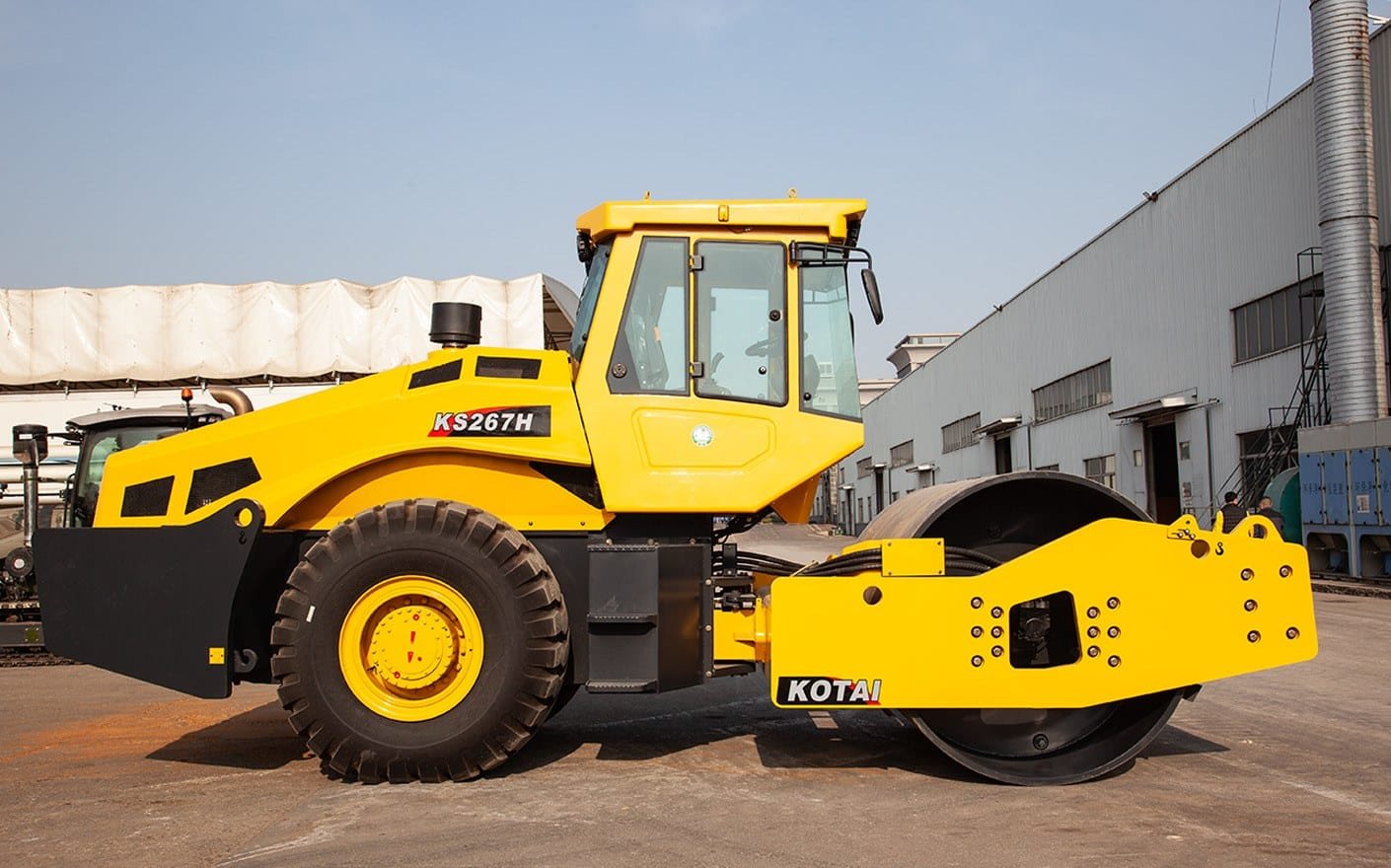

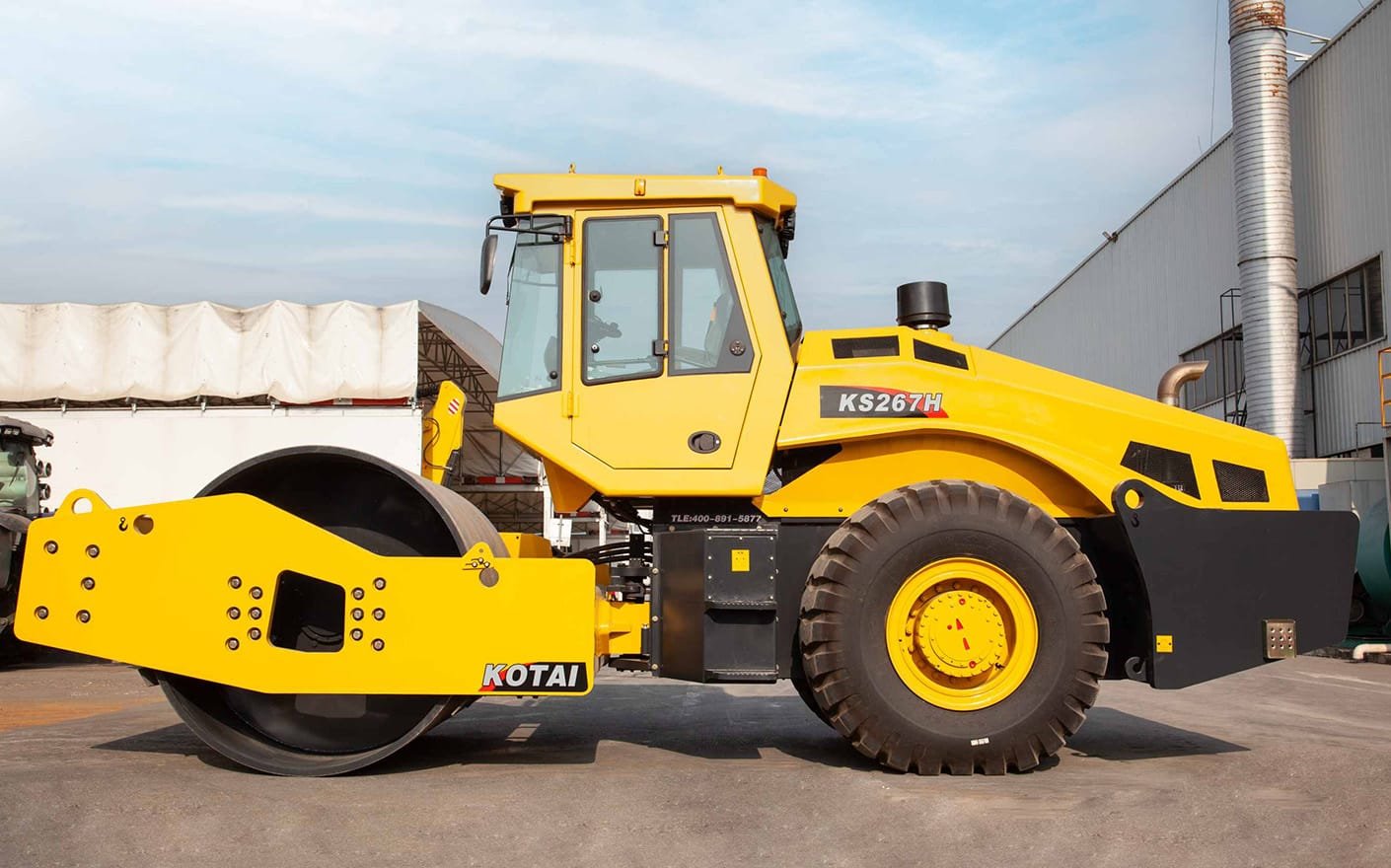

Rodillo Compactador Vibratorio Monocilíndrico de 26 Toneladas (KS267H)

It is mainly suitable for compaction of subgrade, sub-base and fill materials of various types, making it an ideal compaction machine for high-grade highways, airports, ports, dams and industrial construction sites.

Equipped with a high-power engine meeting China IV emission standards and world-renowned brand hydraulic components, the roller better meets construction requirements in various regions.


  • Shangchai
  • 26000kg
  • 2180mm
KS267H
Foto/Vídeo
KS267H
KS267H
KS267H
KS267H
KS267H
KS267H
KS267H
KS267H
Tecnología

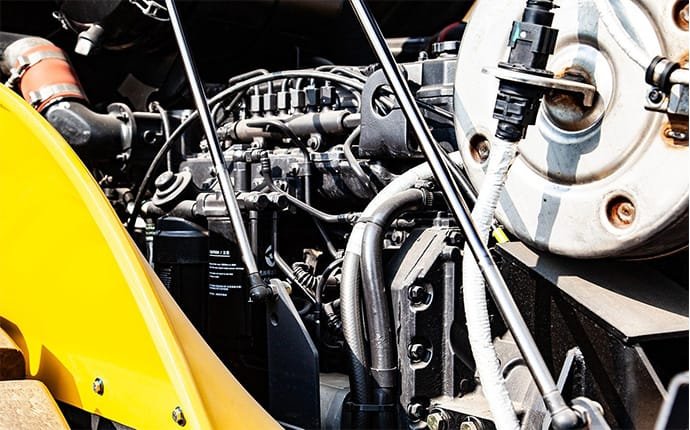

Engine System

Engine System

Equipped with a Shanghai Diesel SC7H water-cooled turbocharged engine that meets China IV emission standards, it features strong power, ample power reserve, excellent sustained performance, long service intervals, and low fuel consumption, fully complying with China IV emission requirements.

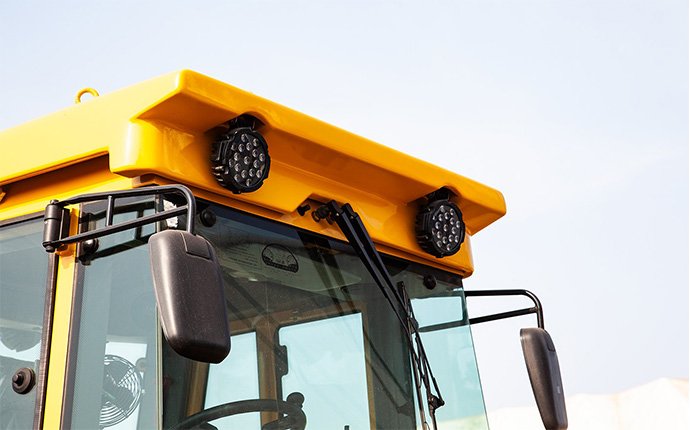

Excellent Construction Visibility

Excellent Construction Visibility

The cab adopts a fully enclosed three-stage damping structure, equipped with heating and cooling air conditioning, ensuring comfortable and reliable operation.

It features an elegant and generous appearance with bright, high-grade interior trim, reaching the advanced domestic level.

The layout of control levers, steering wheel, operator seat and monitoring instruments inside the cab conforms to ergonomic principles.

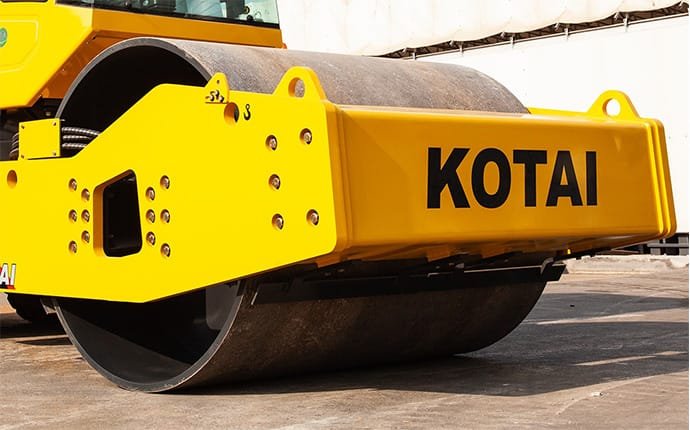

Excellent Compaction Performance

Excellent Compaction Performance

The closed hydraulic system consists of well-known brand axial piston variable pumps and axial piston fixed motors.The oil flow direction at the variable pump outlet changes with the swash plate angle, enabling forward/reverse rotation of the motor output shaft to achieve dual frequency.

The left and right exciters in the front drum generate different eccentric moments when rotating forward or reversely, resulting in different vibration amplitudes, namely dual amplitude.

Dual frequency and dual amplitude enable the roller to effectively compact various materials and layers of different thicknesses.

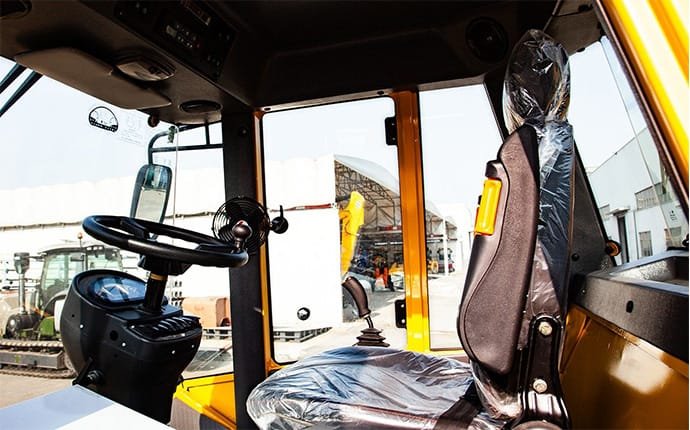

Easy to Operate

Easy to Operate

Single-lever operation ensures high safety and low working intensity.

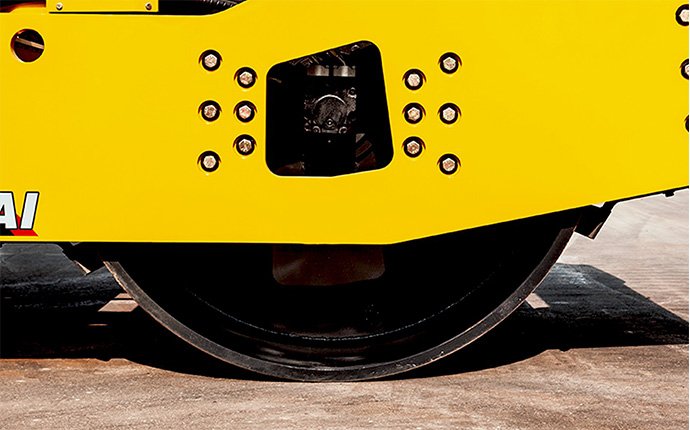

In-situ vibration technology

In-situ vibration technology

A new revolution in vibratory drum technology: splash lubrication + three-stage cooling system ensures continuous operation, keeping bearings stable at around 85°C.

The roller can vibrate in situ, adapting to various working conditions.

Even under heavy alternating loads, the vibratory bearings maintain outstanding performance and long-term reliability.


  • Engine System

  • Excellent Construction Visibility

  • Excellent Compaction Performance

  • Easy to Operate

  • In-situ vibration technology

Datos de productos
Datos Básicos
ModeloKS267H
SerieKS
DescripciónSingle Drum Roller


Motor
Marca del MotorShangchai
Potencia Nominal (kW)147


Peso
Peso Operativo (kg)26000


Rendimiento de Compactación
Carga Lineal Estática (N/cm)584
Frecuencia de Vibración (Hz)34/29
Amplitud (mm)2.0/1.0
Fuerza de Excitación (kN)420/290


Rendimiento de Conducción
Velocidad de Desplazamiento (km/h)0-9
Radio de Giro Mínimo Exterior (mm)7200
Capacidad de Pendiente (%)35


Sistema de Dirección
Tipo de DirecciónArticulated Steering


Dimensiones de la Máquina
Longitud Total (mm)6750
Ancho Total (mm)2400
Altura Total (mm)3300


Dimensiones del Tambor
Diámetro del Tambor Vibratorio (mm)1650
Ancho del Tambor Vibratorio (mm)2180


Preguntas frecuentes
Preguntas frecuentes
  • ¿Qué condiciones de pago aceptan?

    Normalmente aceptamos carta de crédito (L/C) o transferencia bancaria (TT) con un pago inicial del 30% y el saldo restante contra copia del conocimiento de embarque (BL) y fotos de la carga.

  • ¿Cuál es su plazo de entrega?

    Algunos de nuestros productos están en stock, mientras que los productos estándar sin stock suelen tardar entre 15 y 35 días.

  • ¿Son fabricantes?

    Sí, contamos con más de 20 años de experiencia en la fabricación de maquinaria de ingeniería.

  • ¿Aceptan OEM u ODM?

    Ofrecemos servicios de fabricación OEM y ODM. Aceptamos la personalización de productos según sus necesidades específicas de funcionamiento, color y marca.

  • ¿Necesitan un agente?

    Sí, les invitamos cordialmente a unirse a nosotros.

  • ¿Qué productos ofrecen?

    Contamos con una amplia gama de productos, incluyendo más de 100 productos principales, como apisonadoras, excavadoras, cargadoras, perforadoras, motoniveladoras, bulldozers, carretillas elevadoras, grúas, volquetes y otros. Nuestros productos cubren sectores clave como equipos viales, maquinaria para movimiento de tierras, equipos de construcción y equipos de minería. Ya sea para la construcción de carreteras, infraestructuras urbanas, operaciones mineras o proyectos de ingeniería a gran escala, los productos de KOTAI pueden satisfacer los complejos requisitos operativos de diversos escenarios.
