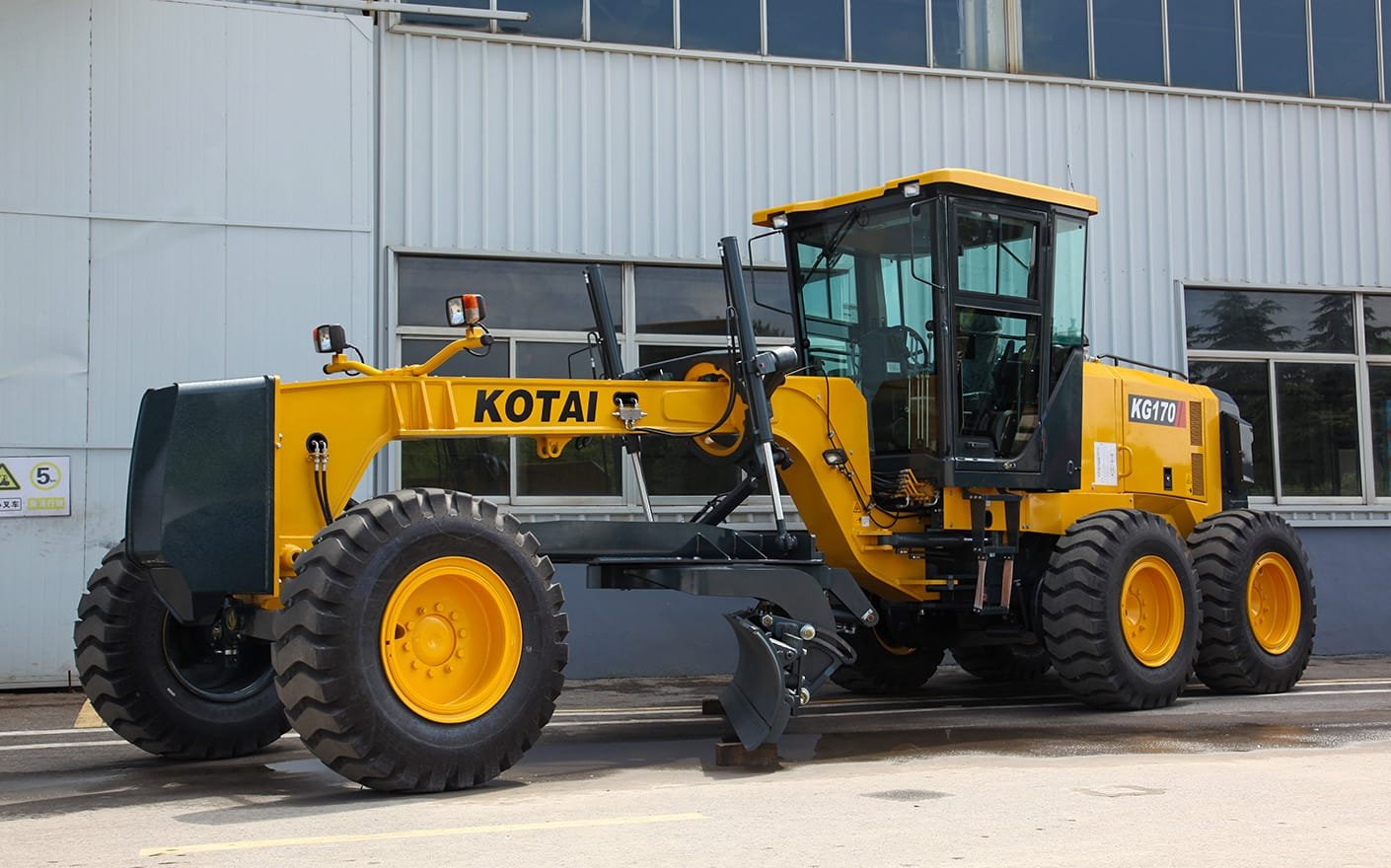

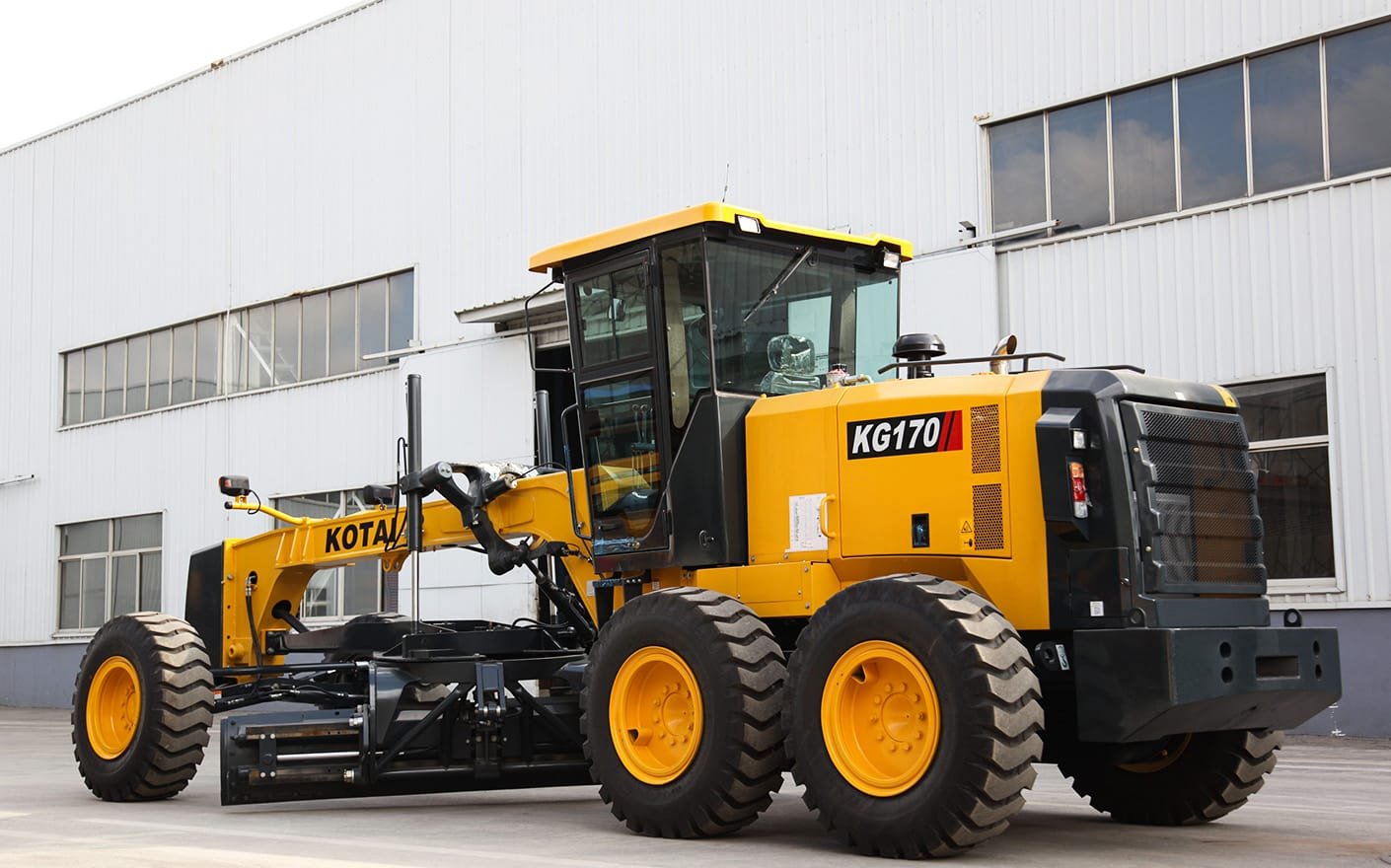

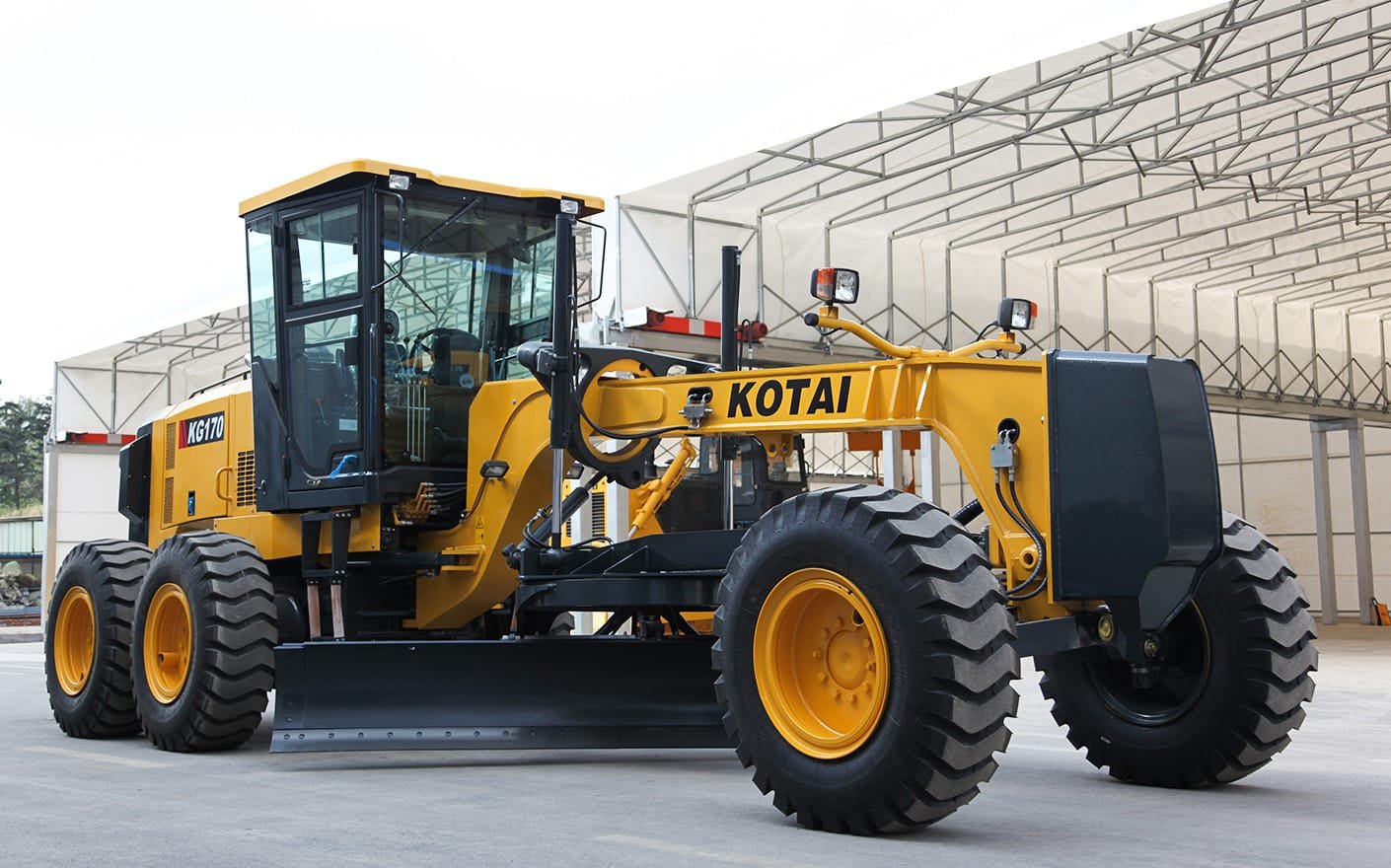

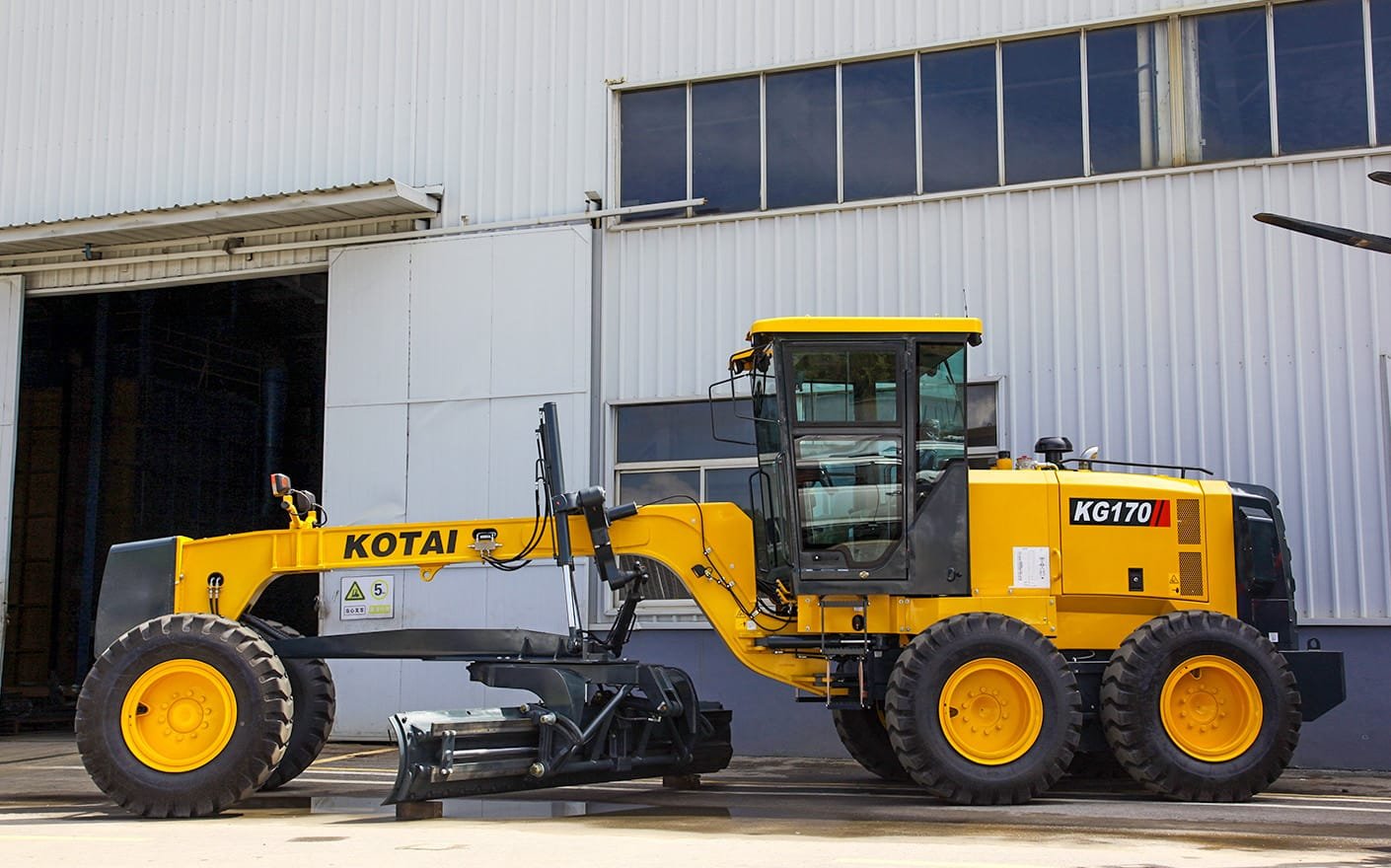

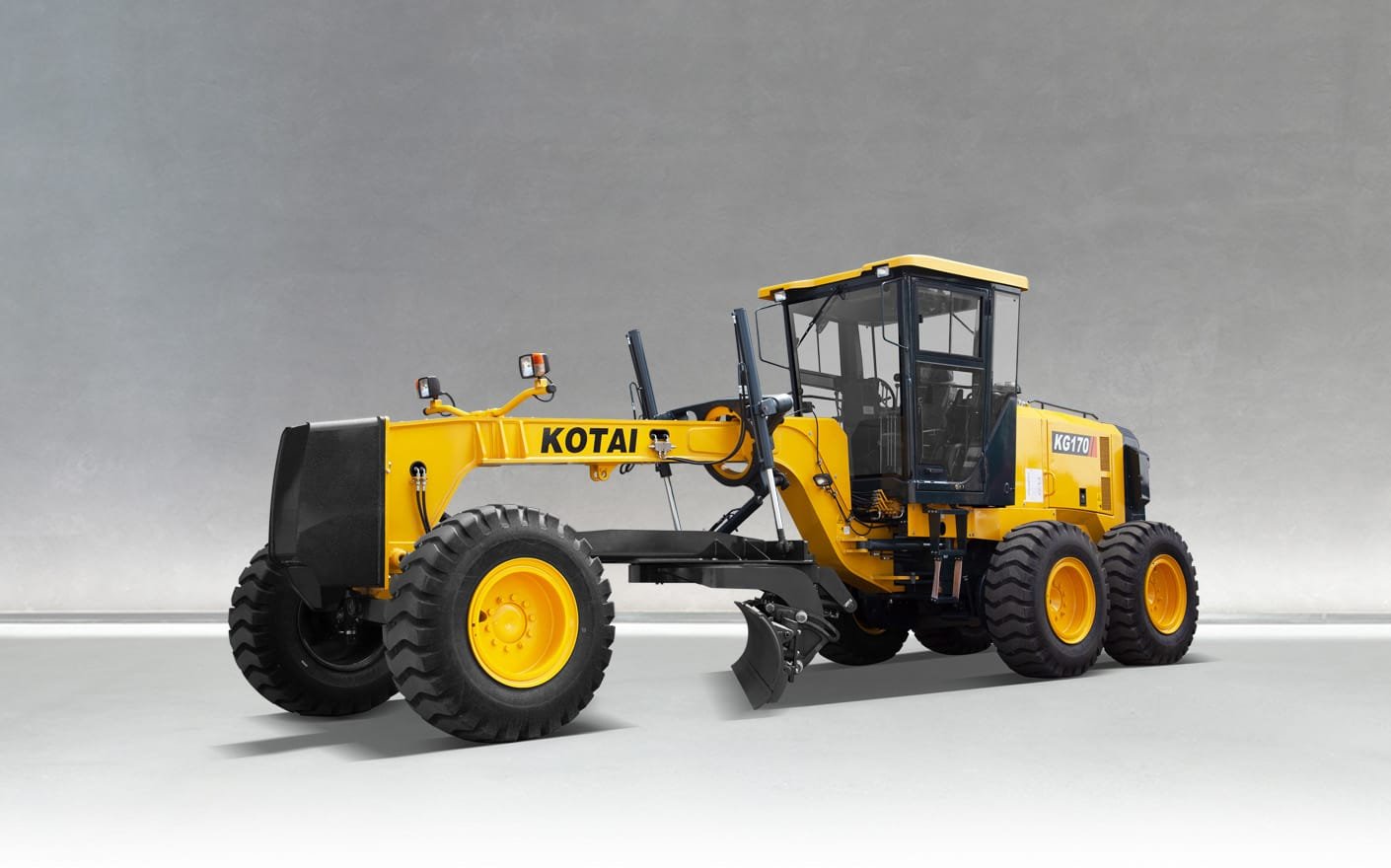

Motor grader is a core earthmoving machine for road construction. Equipped with a multi-directionally adjustable blade, it features high-precision leveling, subgrade shaping, slope trimming, roadside ditch excavation, material spreading and mixing, as well as road snow removal and maintenance.
It is mainly used for precision leveling of highway subgrades and cement stabilized layers, slope renovation, and large-area site leveling and sloping at airports and factory yards. It is also applicable to farmland consolidation, water conservancy ditch excavation, mining platform shaping, daily maintenance of urban and rural roads, and emergency clearance. With flexible operation and high leveling accuracy, it is essential equipment for infrastructure projects.
| Modelo | KG170 |
| Serie | KG |
| Descripción | Motor Grader |
| Ángulo Máximo de Giro de las Ruedas Delanteras (°) | ±49 |
| Ángulo de Articulación del Chasis (°) | ±26 |
| Radio de Giro Mínimo (mm) | 7300 |
| Peso(kg) | 14500 |
| Marca del Motor | Cummins |
| Potencia Nominal (kW) | 132 |
| Velocidad Nominal (r/min) | 2200 |
| Torque Máximo (N.m/rpm) | 750/1300 |
| Longitud Total (mm) | 8820 |
| Ancho Total (mm) | 3658 |
| Altura Total (mm) | 3420 |
| Dimensiones (mm) | 3658*580*20 |
| Desplazamiento de la Hoja (mm) | ±815 |
| Altura Máxima de Elevación (mm) | 450 |
| Profundidad Máxima de Corte / Nivelación (mm) | 535 |
| Ángulo Máximo de Rotación (°) | 90 |
| Ángulo de Inclinación de la Hoja (°) | 29-77 |
| Especificaciones de Neumáticos | 17.5-25-12PR L-3 |
| Número de Neumáticos | 6 |
| Tanque de Combustible (L) | 370 |
| Tanque de Aceite Hidráulico (L) | 65 |
| Marchas (Avance/Retroceso) | F6/R3 |
| Velocidad de Desplazamiento (km/h) | F:6.5/11.4/14.6/24.8/30/49.2 R:6.5/14.6/30 |
| Presión del Sistema (MPa) | 17.5 |
| Caudal a la Velocidad Nominal del Motor (L/min) | 99 |
